Hoppe Multipoint Door Kit - Manual Shootbolt Gear for Active Door
Catalog #HP-MP-ACT
- About this kit:
- This is a manual shootbolt version of a multipoint door setup.
- This multipoint system has three locking points: the deadbolt (at handle height), the upper shootbolt (into the top jamb), and the lower shootbolt (into the floor).
- This kit includes all hardware components required for one active door (that is, either a single door, or the active panel of a pair of doors).
- This kit contains the gear only, not the trim (trim includes the handles, escutcheons, and cylinder lock).
- All working gear components are made of solid stainless steel with a satin finish (except strikes, which have a choice of finish).
- Specifications:
- Door height range: 6' 7-1/2" to 6' 11-1/2"
- Handle height: 36"
- Backset: 60 mm (2-3/8")
- Faceplate width: 16 mm (.63")
- Deadbolt Throw: 1"
- Shootbolt Throw: 20 mm (.79")
- For a measured diagram of the gear, click here.
Hardware Components Included in This Kit:
| Name |
Description |
Quantity |
Finish |
| Gear |

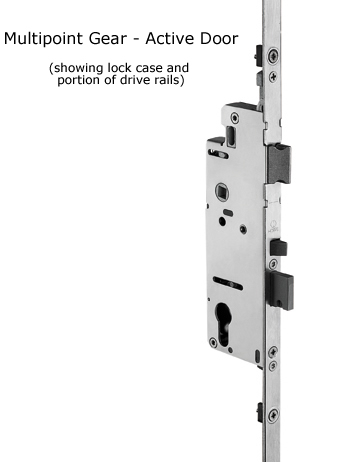

Lock case with bottom section of drive rail and lower shootbolt. |
1 |
Satin Stainless Steel |
Middle
Extension |
Connects Gear to Top Extension. |
1 |
Satin Stainless Steel |
Top
Extension |
Top section of drive rail and upper shootbolt. |
1 |
Satin Stainless Steel |
| Cover Plate |
Covers faceplate connection to Top Extension. |
1 |
Satin Stainless Steel |
Latch and
Deadbolt Strike |
Strike plate with curved lip. Non-handed. |
1 |
Polished Brass,
Satin Stainless Steel,
or Oil Rubbed Bronze |
Shootbolt
Strikes |
Strike plates with curved lip. Adjustable. Handed (Left or Right). |
2 |
Polished Brass,
Satin Stainless Steel,
or Oil Rubbed Bronze |
Shootbolt
Supports |
Guides for upper and lower shootbolt. |
2 |
Satin Stainless Steel |
| Dust Boxes |
For use under latch and deadbolt strikes. |
2 |
Black plastic |
Gear
Mounting Screws |
1-3/8" stainless steel wood screws. |
19 |
Satin Stainless Steel |
| Strike Screws |
Finish compatible 3/4" stainless steel wood screws. |
8 |
Finish will match strikes |
 |
